The carton stitcher is equpped with dual servo system andtouch screen. The PLC system is from Mitsubishi, Japan. The carton stitcher is suitable for nailing all kinds of corrugated box machine, which is effective and quick. Besides, single nail or double nails stitching could be arbitrarily adjusted.
The servo controlled semi-automatic carton stitcher updates from ordinary semi-automatic carton stitcher, which is the newest product. The whole drive and operation of the carton stitcher are powered by two groups of servo drive motors. The mechanical sheet feeder, the nail part and the rear baffle can be directly operated on the touch panel, which is precise, convenient and quick. There is no need for workers to take the rulers to adjust the size around the carton stitcher, which avoid the weaknesses of the ordinary carton stitcher using gears and bearings to drive the machine and decrease mechanical failure rate to extend the service life.
|Nail Wire spec||2.6mm*0.72mm|
|Max Sheet size||1515*2460mm|
|Min Sheet size||300*606mm|
|Max Board Plaching Height||900mm|

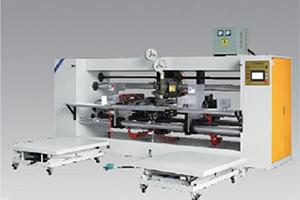

Double-piece and dual-servo controlled semi-automatic carton stitcher can stitch single-piece cartons, double-piece and irregular cartons. Besides, cartons with bottom but no cover and large cartons also can be nailed. All parts of the carton machine are controlled by electric, the process of nailing carton is quick and labor-saving. The sheet feeder uses automatic counter to count the amounts of completed carton and the finished products are delivered to bundling. When the carton specifications switch, it just needs two or three minutes to achieve the adjustment, so the operation is convenient and quick. The carton stitching machine can also nail single nail, double nails and reinforced nails, which has high flexibility. The machine uses the computer to spontaneously adjust the nail distance and the computer screen also can display the breakdown clues, which is beneficial to the quick breakdown elimination. This is why the ordinary type carton stitcher's performance can not be compared.
|Max size(length plus width)||4800|
|Min size(length plus width)||1060|
|Max sheet width(mm)||1200|
|Min sheet width(mm)||180|
|Min sheet height(mm)||400|

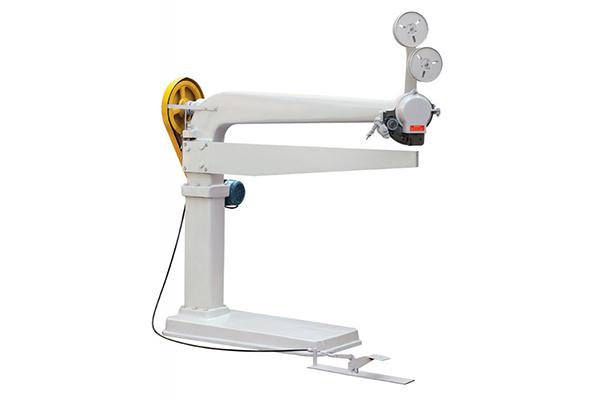

The high-speed pedal nailing machine is a new product which upgrades from ordinary carton stitcher. Now it is the most progressive and effective high-speed pedal nailing machine in China.The high-speed nailing machine adopts progressive electric and magnetic clutch and electronic brake equipment to take the place of the traditional mechanical clutch to control the operation, which has features such as high efficiency, less energy consumption, using electronic devices, low failure rate and easy operation. It is appropriate for a variety of specifications carton nailing.
|Nailing Length (mm)||1300||1800|
|Max Carton Thickkness(mm)||15||15|
|(LxWxH) (mm) Dimensions||1800x650x1800||2300x650x2000|
Besides the corrugated carton making equipment, Jiufeng company also provide carton stitcher, and as we provide complete corrugated cardboard box machine line, including corrugated cardboard printer, cardboard cutter, cardboard folder and gluer with plenty of experience since 1996, we are sure to offer customers high quality corrugated carton equipment and corrugated cardboard solutions for customers.
