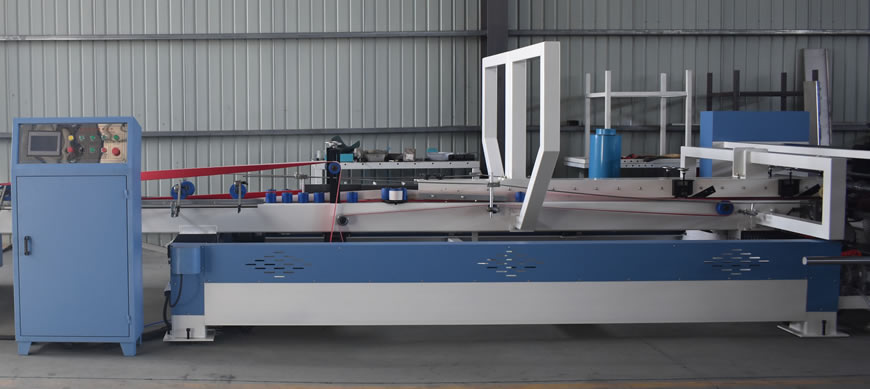

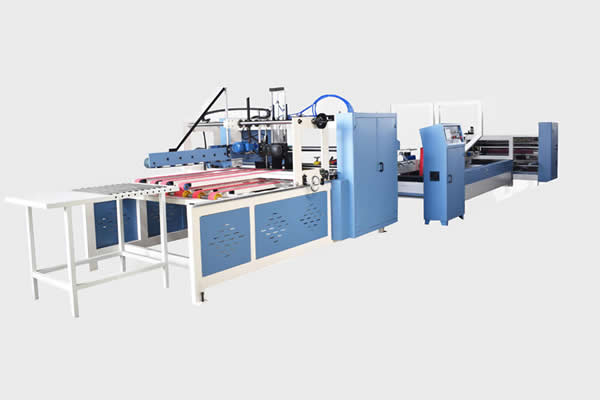

The automatic folder gluer machine is designed with digital control and auto feeding, enabling it to achieve a high corrugated board handling capacity up to 120-220 pieces/min. This machine features a re-creasing unit, allowing for accurate folding.

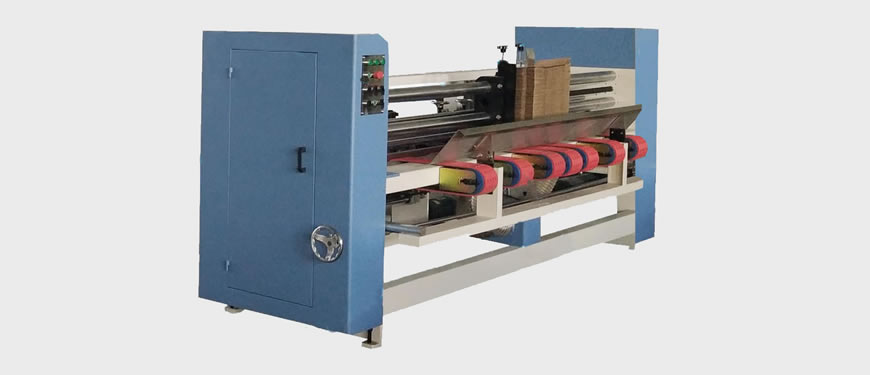

Suction Belt Feeder
A vacuum fan is equipped on the belt to assist in smooth feeding. The sheet feeder is designed with a electromagnetic clutch to achieve independent feeding control, allowing for easy operation.

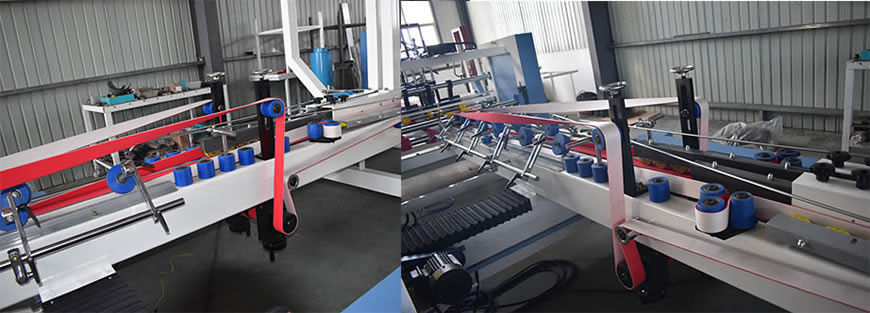

Gluing and Folding Unit
Auto glue feeding and uniform glue distribution ensure reduced amount of glue used. The 2nd creasing provides accurate and smooth folding.
The side guides enable blanks to be conveyed in a smooth manner. The height of blanks conveyed and compression force can be easily adjusted.

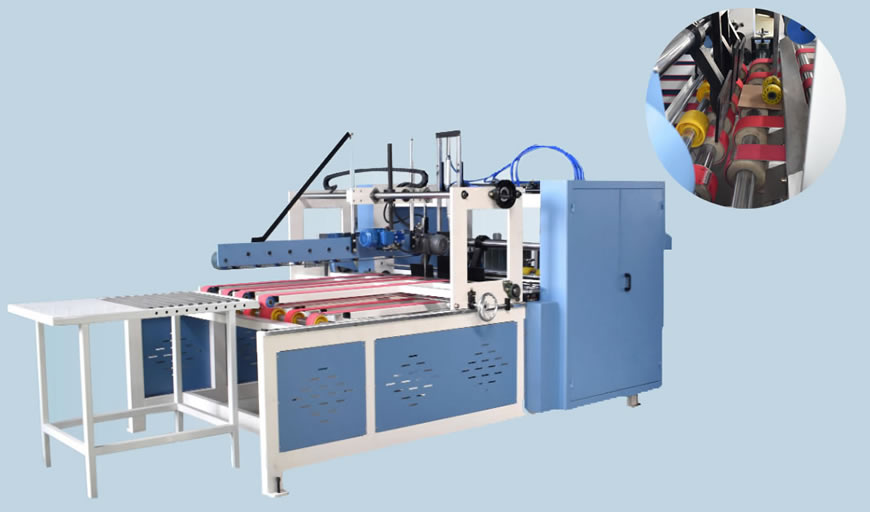

Counting and Stacking Unit
Featuring with automatic counting and stacking function, the finished cartons can be automatically counted during conveying and stacked according to pre-determined parameter.

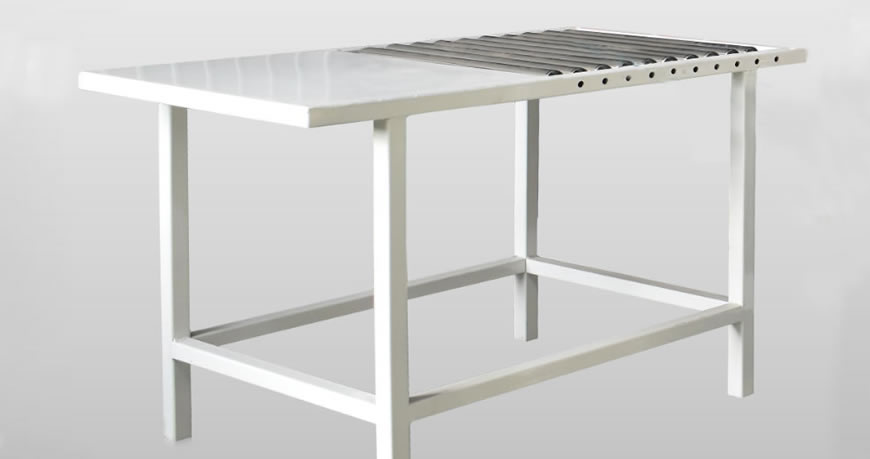

Finished Carton Output

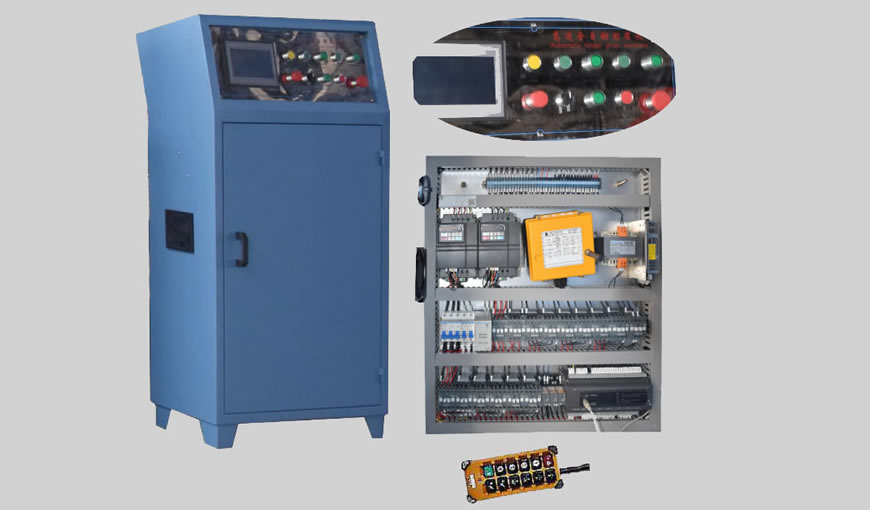

Central Control Panel
.Digital remote control for easy operation .Intelligent control and management including parameter setting and fault alarm .Optional memory function and order storage
|Operating speed (pcs/min)||120-220|
|Frequency converter||Taiwan DELTA|
|Power supply||Japan Omron|
|Intermediate relay||France Schneider|
|Remote control||Taiwan Telecrane|
|Circuit breaker, travel switch, button switch||Chint|
Besides the corrugated carton making equipment, Jiufeng company also provide rotary slotting and corner cutting machine for making carton and box, and as we provide complete corrugated cardboard box machine line, including corrugated cardboard printer, cardboard die cutter, cardboard folder and gluer with plenty of experience since 1996, we are sure to offer customers high quality corrugated carton equipment and corrugated cardboard solutions for customers.
